Become an expert in MUOS troubleshooting.
Mighty MUOOS™ is the ONLY off-satellite
solution for MUOS troubleshooting.
The Mobile User Objective Orientation System or Mighty MUOOS™ (pronounced Moose) enables organizations to achieve their MUOS objectives. From integrating terminals in aircraft to building your next communication gateway, Mighty MUOOS™ is the efficient and economical solution.

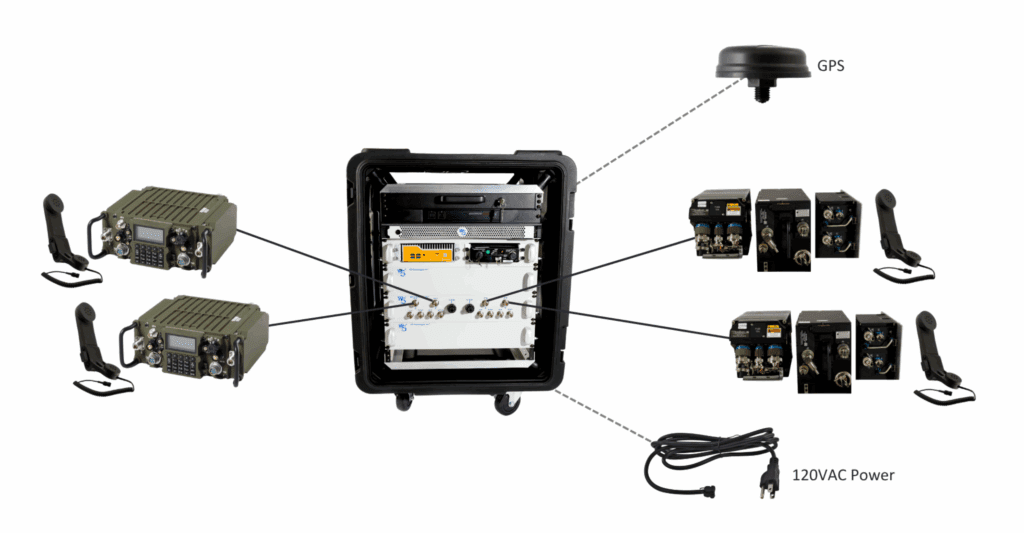

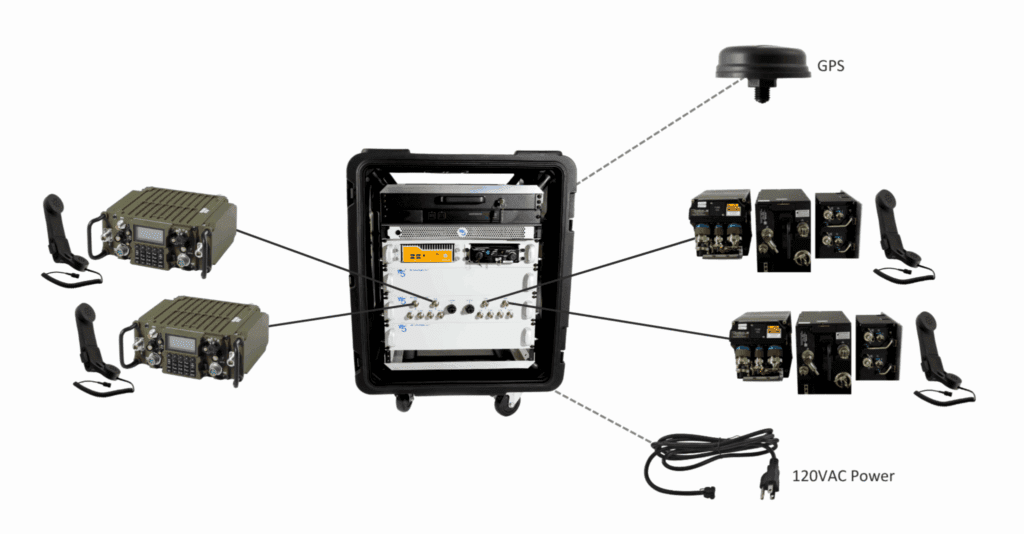

Notional Lab Diagram
We know you have choices:
Choice 1:
Spend the next two years traveling to a windowless, cold government lab. You might be under the impression that you will only be in this lab for 3-6 months, but the reality is you will be in that lab for a minimum of two years. This is a lot of time away from your family and friends.
Choice 2:
You can go over the live system satellite, but you’ll need to get prior approval and authorization. This request will be a low priority for system resource allocation. And, you’ll have no visibility to troubleshoot issues, causing you to be late on your objectives and late taking your product to market–all impacting your schedule.
Choice 3:
Buy the Mighty MUOOS™. Our product saves you time and money.
You can collaborate in real time with your team, and the knowledge you gain stays in house.
You’ll have access to W5 MUOS experts who have 20+ years experience, and we will answer your calls for help and support your team on the ground.
You get to sleep in your own bed each night and spend time with your family.
Product Specifications
Supported Call Types:
Point-to-Point (PtP)
Point-to-Net (PtN)
Netted Comms (Group)
Multi-RAB (Summer CY ‘25)
Data Rates:
2.4 kbps
9.6 kbps
32 kbps
64 kbps
Operating Frequencies:
300-320 MHz (UHF) in the U2B direction (configurable)
360-380 MHz (UHF) in the B2U direction (configurable)
Hardware supports MUOS Plan B frequencies
Control and Interface:
Web based Graphical User Interface
Local and Remote Access supported
Power:
120VAC
Dimensions:
26”W x 34”H x 36”D
Inputs:
GPS signal
Model 1900-1
Up to 4 direct connected TX/RX
terminals
Model 1900-2
Up to 4 direct connected TX/RX
terminals

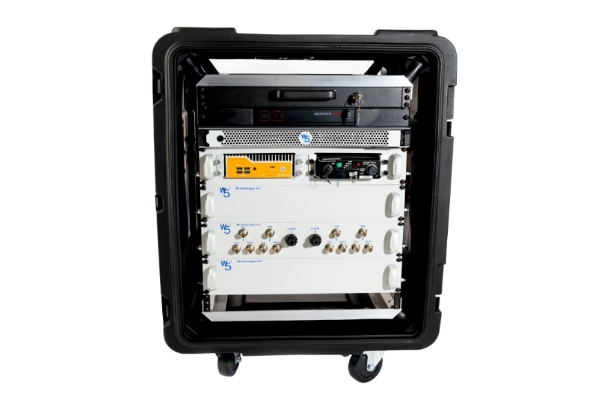

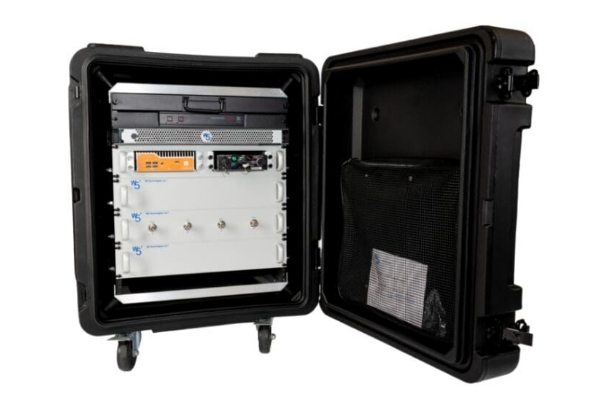

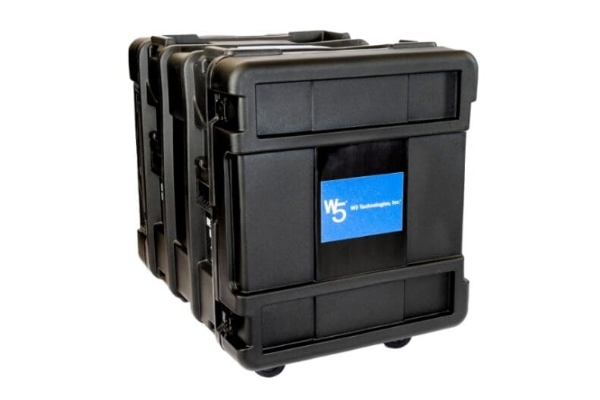

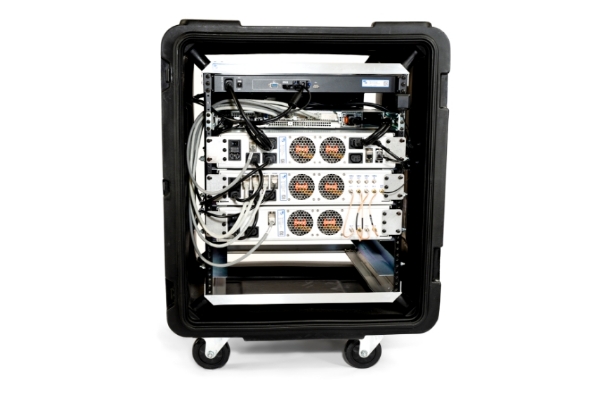

Case:
Rugged shipping container
Shock mounted electronic chassis
Removable, stowaway front and rear covers
Removable, lockable swivel casters
Water resistant
Grip handles
Setup and Training:
Remote setup support and training included
Warranty:
12 months
Options:
Expansion module for added beam, enabling mobility testing
Extended support
